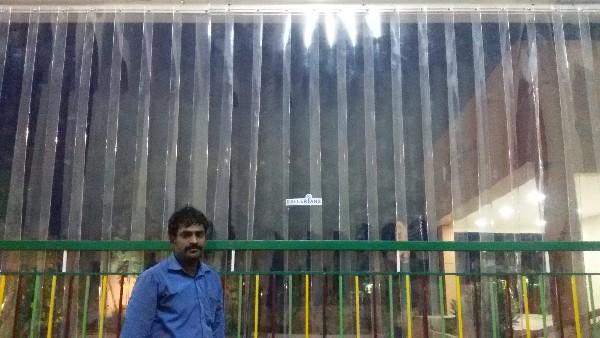

Flexible plastic type PVC strip curtain strips have
good transparency. It can stop the loss of cold air or warm
air effectively and prevent the invasion of dust and ultraviolet.
PVC strip curtain also reduce the dB value of noise, constrain
noise from spreading and noise pollution. When used as partition
screen, they create multifunctional compartments (operating
field, offices and restrooms) without taking up any space, ensuring
the most effective utilization of limited space and improving
the comfort in the operation spaces and productivity.
Colors
Warehouse strip door curtains can be manufactured in six
colors, pale green and pale blue is the international standard
choices; clear strip pvc is the best choice for allowing
good vision. We also have yellow, dark blue, dark green and
brown in hand, we also can make special size according to your
requirements.
Packages
Usually we pack plastic strip
curtain door and hook-on strup door hanging systems in
shrink wrap plastic and for rolls of 50m pvc strip rolls in
plastic on a pallet, and then packed to the pallets to meet
transport facility. We also can design carton boxes and Non-fumigation
boxes for special need in order to avoid damage through transport.
For the inner dimension of the rolls,
our standard is 68mm; we also can design for your needs
Very Light Duty
Used in areas with very light pedestrian traffic or fragile
goods, and light industrial doorways.
Light Duty, Pedestrian and pallet trolley access, for wind
and dust exclusion areas. Commonly used in food processing industries
and for internal wall and doorway separation.
Medium Duty
used in outdoor or indoor conditions where requiring contamination
exclusion. Pallet trolleys, light fork lift and pedestrian use.
Heavy Duty
outdoor or indoor conditions requiring significant weather/environmental
exclusion and heavy/frequent pedestrian and fork lift traffic
Polar PVC Strip Curtain
Brief Introduction
Polar PVC strip curtain remain highly soft even at 50 Celsius
below zero, allowing easy passing of people, vehicles and
goods and effectively preventing loss of cold air. Polar PVC
sheet is a good choice for to save energy because they do
not contain electric drive. Polar door curtain for coldstore
strip curtain doors do not have action component and
do not produce noise during service. Cool strip door
curtain has been designed from market experience and
has been proved in independent tests to up to 50% of energy
costs, while helping retail chill cabinets meet statutory
temperature controls.
Colors
Polar door curtain are available in a range of colors,
such like pale green, pale blue and clear. Blue is the most
popular color in usages. If you used in the dark environment,
just like cold rooms strip door curtain, clear color is the
best choice.
Styles
PVC Strip Curtain door UK has three styles of PVC strip
door curtain, Smooth, Single Ribbed and Double Ribbed. The
strip door curtain used is dependent on the applications.
PVC strips with raised ribbing on both sides are available
offering improved durability enabling them to withstand repeated
impact from heavy traffic such as forklift trucks.
Applications
Polar grade PVC strip curtains are an option for Cold storage,
Cold Stores, Refrigerated doorways, Deli-Counters, Chiller
Cabinets, Cold rooms and most retail refrigeration situations.
Usually 50% overlap, fixed stainless steel rail & hook
on strips - either 200 x 2mm or 300 x 3mm.
PVC Sheet
 Brief IntroductionWide width soft boards, a high-quality plastic-rubber
foam composite material, clear and transparent, with smooth
surface and uniform color, free from cracks or bubbles.
It features high withstand capacity to heat and coldness,
high resistance to strong acids and alkali, hard pressure,
impact, stretch, ageing and has good antistatic property,
high transparency and life service life.
Colors
RAC Kettering range of PVC Curtain doors are available
in a comprehensive range of colors, including Green, Yellow,
Red and Clear. (Please note that color availability may
change depending on curtain weight and thickness. Please
contact us for availability).
Styles
The main type for table use and workshop use are flat
surface, you can cut to any size as you’re needed, we
have the super width up to 1800mm, which meet almost all
the applications.
Applications
PVC sheet finds wide applications in electronic, chemical,
pharmaceutical, food and garment industries and can be used
as workbench top, machine surface and desktop.
How to order?
Step 1: Determine your PVC strip curtain door specifications.
We will need to know PVC strip widths, height, thickness,
style and applications
Step 2: Determine your hanger and holder specifications
(if applicable).
For each hook-on system, we need know the length of hangers
you needed.
Step 3: Send us the above information.
You can use our quote request forms or make your own form.
You can fax, email or call in your list.
＊The PVC strip curtain must be used in required ranges
and temperatures.
＊When it is pressed, please open/close any
valve slowly to avoid the form of shock pressure and damage
the door curtain.
＊PVC strip curtain will have little expansion
and contraction with the change of its international pressure.
Please cut the PVC strip curtain in the length a littler
longer than needed in your use.
＊Please don't keep the PVC strip directly
near naked flame.
＊Please don't put our non-food PVC strip
curtain into the production and processing of food products,
supplying drinking water, cooking or washing foods.
＊All used door curtain should be suitable
for usages. Please consult our company when you are not
sure whether the door curtain is suitable to your requirements.
Cautions for Assembly
＊Please select proper metallic joint to
assemble the strip curtain.
＊To insert the PVC strip in to the holders
of the hook-on system, no fire permitted. If the holders
fails to be inserted into the strip, warm the hose with
hot water, then insert.
Cautions for Inspections
＊Before door curtain is used, please confirm
it appears no abnormal (hardening, softening, discoloration),
etc
＊During the regular service of the PVC strip
curtain, please give regular inspection monthly.
＊The service life of the door curtain is
subject to the property, temperature, velocity of flow and
pressure of fluid to a large extent. Please stop using as
soon as finding any abnormal phenomenon during inspection
and regular inspection, repair it or replace it
Cautions for storage
＊Products must be stored in cool, dry places
with temperature ranging between -10℃ and
20℃, sheltered from the sun and free from ozone, etc.
＊Avoid contact with hydrocarbons, solvents,
acids and alkalis.
＊Please don't keep PVC strip directly contact
or near naked flame.
Cautions for disuse
＊Please don't burn it. Burning the PVC strip
curtain will damage the furnace and produce noisome gases.
Please treat the door curtain as industrial waste.
＊Please treat it according to the regional
requirements.

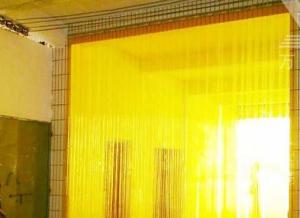

Insect Proof PVC Strip Curtain
Brief Introduction
Windows in commercial food preparation areas need to
comply with the latest food and Hygiene Regulations by
fitting a screen which prevents the entry of insects,
birds and other infestations. Insect-Proof PVC strip curtain
is an ideal solution for anywhere that insects aren't
welcome. Insect proof PVC strip curtain made with a specially
formulated repellent material that wards off insects.
Sanitation authorities are highly concerned with the hygiene
conditions of food and drug handling areas.
Colors
Yellow is the only color available in proof insect.
It emits special light which dispels insects.
Styles
Considering the special usage of insect-proof PVC strip,
we suggested to use the smooth surface to meet the requirements
of nice-look, easy-clear, for different application place,
please contact us for more suggestion.
Applications
Ideal solutions for:
- Back doors of restaurants;
- Personnel doors at commercial and manufacturing locations;
- Open air concessions at parks, sports arenas and
other outdoor facilities;
- Any open area where flying insects are a pest;

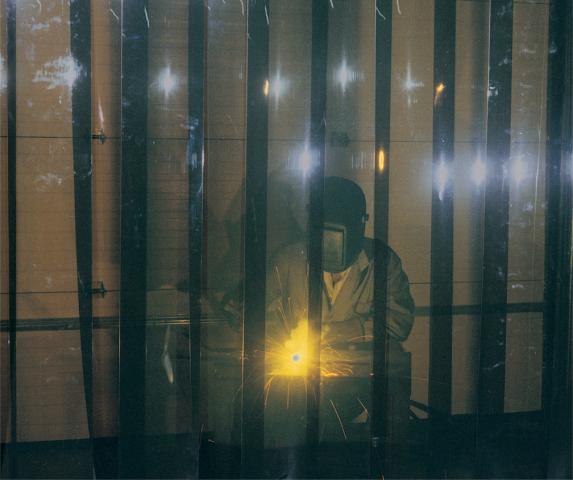

Welding PVC Strip Curtain Doors
 Brief Introduction Tinted transparent PVC strip curtains are designed
to save energy, protect workers, and reduce noise in warehouse
and factory applications. Specifically designed
for doors that enclose areas where welding is being performed.
Its tinted color helps reduce the incidental effects of
bright, ultra violet light from welding arcs. Sparks bounce
off the thick material, yet it is transparent enough to
allow supervisors and others to view the welding area.
Colors
For welding booths and mobile welding screens, weld
Strip comes in three colors: Dark Bronze, Dark Green &
Ultra Violet Red.
Style can be flat for economy choice and ribbed for
clear choice. Ribbed and wide ribbed PVC strip are easier
to wash, but it doesn’t influence the durable performance,
all our products are guarantee for 5 years.
Applications
Welding PVC strip curtain designed to protect individuals
from ultraviolet radiation, sparks, and spatter. Great
for traffic areas where need to be accessed regularly
but still require protection. Appropriate eye protection
must still be worn. It will help protects workers from
Welding area, Flash burns and UV light.

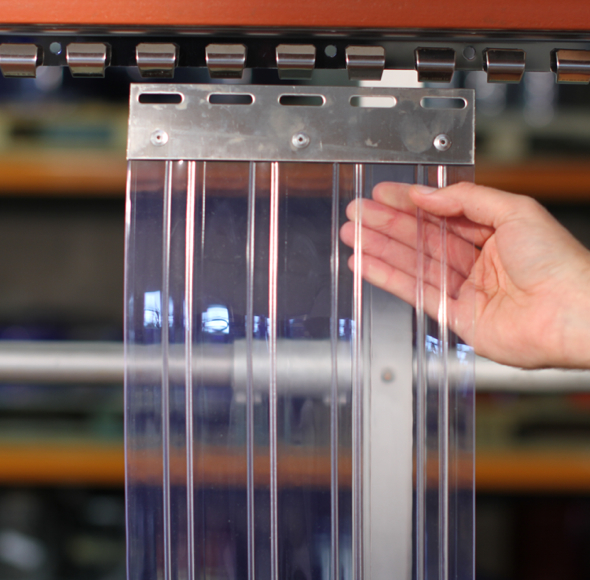

Hook-on system Strip Curtain Doors
This type Suspension hardward is most popular type
of hanging system. The stainless steel or galvanised
Hanging Rails are fixed onto the underside or facing side
of the door frame / beam support. We recommend this system
for light industrial applications where there is manual
pallet movement & occasional fork lift trucks traffic
etc.
How many strip curtain you can butted to the hangers
|
Width of
PVC strip curtain
mm
|
Length of hangers
mm
|
Number of strips
PCS
|
overview of Over lop
|
|
200
|
900
|
6
|
|
|
1050
|
7
|
|
1200
|
8
|
|
1500
|
10
|
|
300
|
1000
|
4
|
|
1500
|
6
|
|
400
|
1050
|
3
|
50mm is just the standard size, you can enlarge
it according to your usage.
|
|
1400
|
4
|
What’s one set mean?
Stainless Steel Suspension Plate Set 2 plates per set,
including one hanger and one set holders. The length of
hanger can make according to your requirements, the different
is the hole in the holders. Please see details below,
|
Holders for
200mm width PVC strip
|
Holders for
300mm width PVC strip
|
Holders for
400mm width PVC strip
|
|
How to install the PVC strip curtain?
1． Cutting
Measure the size of door and cut the PVC strip curtain
accordingly. Make sure the angle is 90 degree; Be carful
with the cutter
2． Punch hole
a) Pushing holes in one
side of PVC strip curtain
b) 200mm width door curtain
need 3 holes
c) 300mm width door curtain
need 4 holes
3． Install holders
a) Butt holders to the PVC
strip with Screw.
b) Make sure the angle between
strip and holders is 90 degree
4． Install hangers
a) Choice the best tool
to punch hole according to the material of wall
b) If the hangers need to cut for special use, make
sure you have remove the flash before installation.
5． Install holders to hangers
6． Butt odd holders firstly, and then even holders.
What’s our value added services for this products?
◆Special package: if
your quantity is bigger and you are worried about the
safe in the transport, we can book wood box for you (Non-fumigation
boxes and pallets)
◆ Special Length: we
have full set cutting machines; we can make any length
according to your requirements. Tell us the width of your
door, we will show the best one set choice
Icecape Ltd strip door curtain
specializing in developing, manufacturing, exporting PVC
Strip Curtain and related hook-on hardware. Our company
has skilled workers including pvc strip curtain technicians.
The construction area is 6000ft2 of total 10000 ft2. We pride
ourselves as one of the biggest PVC strip curtain manufacturers
in the UK.
Industry as the International department locates in Kettering,
Northanptonshire and has convenient transport facilities.
We believe that we will establish long-term good business
relationships through discussion and cooperation.
Information of our workshop
Extrusion production lines,
we can offer almost all types PVC strip curtain, super width
is up to 1.80mm.
Full set testing machines, all
of us PVC strip curtain serious meets EN71 standard and
Rosh standards. No small, no crake, no paraffin.
Full set rolling machines, our
standard inner roller core is 70mm, we also can make inner
core up to 300mm in order to help you protect the products’
performance.
Our entire PVC strip can be packed
in carton box or wooden box according to your requirements,
which will avoid destroy in transport.
PVC strip curtain size
We can supply door curtain cut to your desired length
to save you time on site
|
Thickness
|
Length
|
|
Width
|
|
2mm to 4mm
|
Rolls of 50 m
|
|
Standard:
200mm - 300mm - 400mm
- 1000mm - 1200mm
|
|
5mm to 7mm
|
Rolls of 30 m
|
|
|
8mm to 10 m
|
Rolls of 10 m
|
|
Special Width: up to 1800mm
|
|
10 m to 12 m
|
Sheets of 1m
|
|
Thickness over 4mm: 1000m(max)
|
Manufacturing Tolerance
|
Thickness (mm)
|
0.02
|
|
Width (mm)
|
1
|
|
Length (Mtr)
|
0.2
|
|
Size
|
Standard
|
Single Ribbed
|
Double ribbed
|
|
100mmX2mm
|
√
|
|
|
|
200mmX2mm
|
√
|
√
|
|
|
200mmX3mm
|
√
|
√
|
√
|
|
200mmX4mm
|
√
|
√
|
√
|
|
300mmX2mm
|
√
|
√
|
|
|
300mmX3mm
|
√
|
√
|
√
|
|
300mmX4mm
|
√
|
√
|
√
|
|
400mmX2mm
|
√
|
√
|
|
|
400mmX3mm
|
√
|
√
|
√
|
|
400mmX4mm
|
√
|
√
|
√
|
Main Physical Indexes of the PVC Strip curtain
|
Items
|
Unit
|
Index
|
|
Light Transmittance
|
%(thickness 2.5mm)
|
80 min
|
|
Tensile strength
|
MPA
|
20 min
|
|
Elongation at break
|
%
|
200 min
|
|
Heat Treatment Dimension Change
|
% @ 80 Celsius 12 hours
|
Crosswise 1.2max
Lengthwise 2.0max
|
|
Bedding Property under Low Temperature
|
20 Celsius Below zero
|
No creak
|
|
Withstanding Voltage
|
under 10 KV min
|
No arcing
|
For a strip curtain or
a pvc strip curtain or
even a plastic strip curtain or
maybe a plastic warehouse curtain or
a PVC strip curtain visit
the homepage
|
.jpg)
